Effortless Lifting. Safe Beam / Cloth Roll Transport.
Engineered for the evolving needs of modern textile mills, our material handling equipment streamlines the movement of cloth rolls, warping beams, and pallets with precision and safety. From robust manual systems to advanced battery-operated solutions, each product is designed to minimize operator strain while maximizing productivity. Built for durability in demanding fabric manufacturing environments, our equipment ensures smooth workflows, reduced downtime, and enhanced workplace efficiency. Empower your workforce with reliable handling solutions that make heavy loads lighter and operations smarter.
Application Features

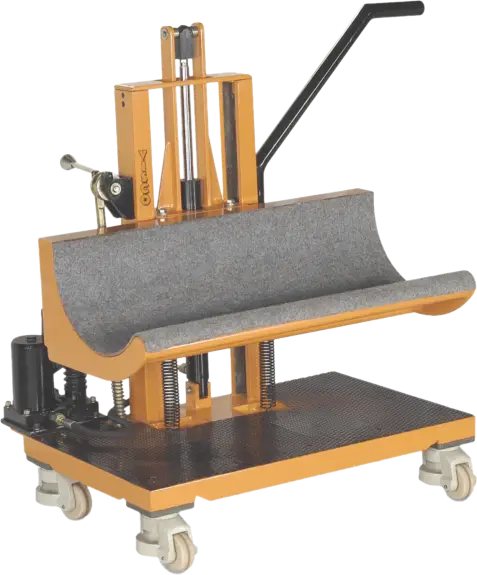

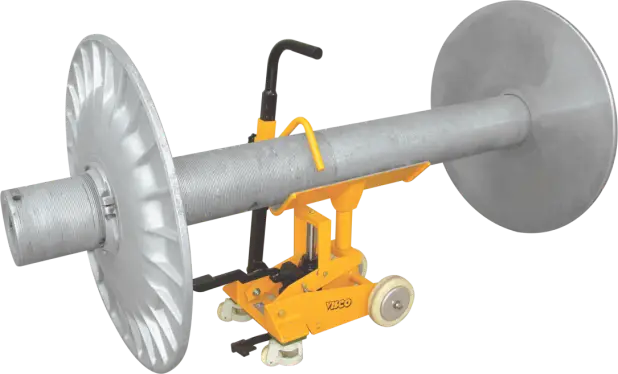

Trolley is designed for lifting and transporting of empty beams. Lifting & lowering movements take place from the floor, small construction type, easy steering & adjustable for different diameters of beam flanges.
Technical Features
- Maximum Beam Weight Capacity
- : 200 to 500 Kgs
- Maximum Beam Flange Dia
- : 800/1000/1100/1250/1400 mm
- Maximum Barrel Dia
- : 150 to 365 mm
- Maximum Barrel Length
- : 1800 to 4000 mm
Application Features
Compact trolley is designed for lifting and transporting of empty beams. Lifting and lowering take place from the floor, compact design for moving beam from smallest possible area. Beam barrel is locked while transporting the empty beam.
Technical Features
- Maximum Beam Weight Capacity
- : 200 to 500 Kgs
- Maximum Beam Flange Dia
- : 800/1000/1100/1250/1400 mm
- Maximum Barrel Dia
- : 150 to 365 mm
- Maximum Barrel Length
- : 1800 to 4000 mm
Application Features

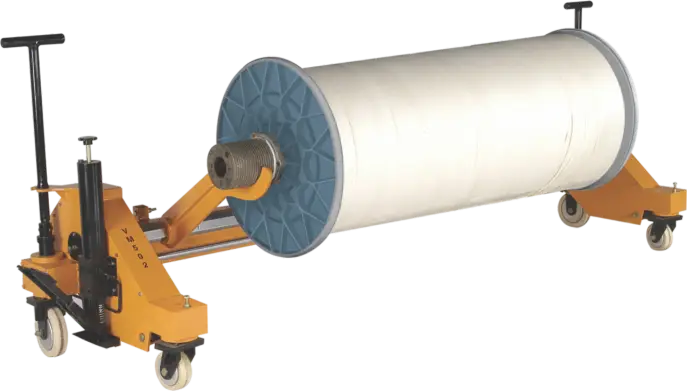

Trolley is designed for lifting & transporting of warp beam of different length & weight. Lifting & lowering movements take place from the ground floor, so that the beam can be fitted on the weaving machine very conveniently.
Technical Features
- Maximum Beam Weight Capacity
- : 1000 to 6500 Kgs
- Maximum Beam Flange Dia
- :800/1000/1100/1250/1400 mm
- Maximum Barrel Dia
- : 150 to 365 mm
- Maximum Barrel Length
- : 1800 to 4000 mm
Application Features

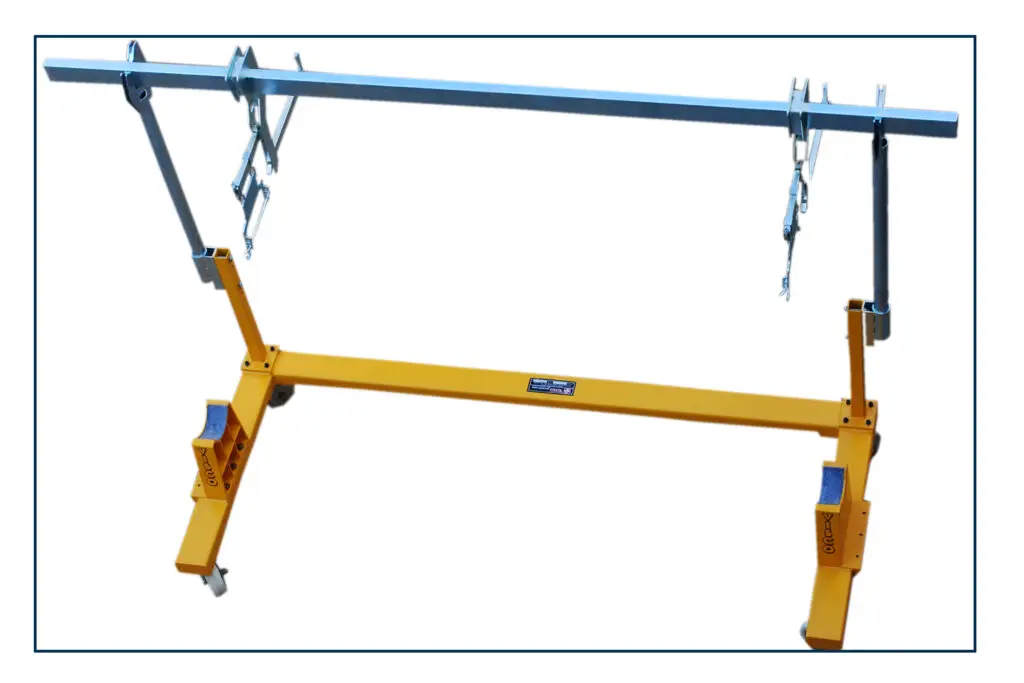

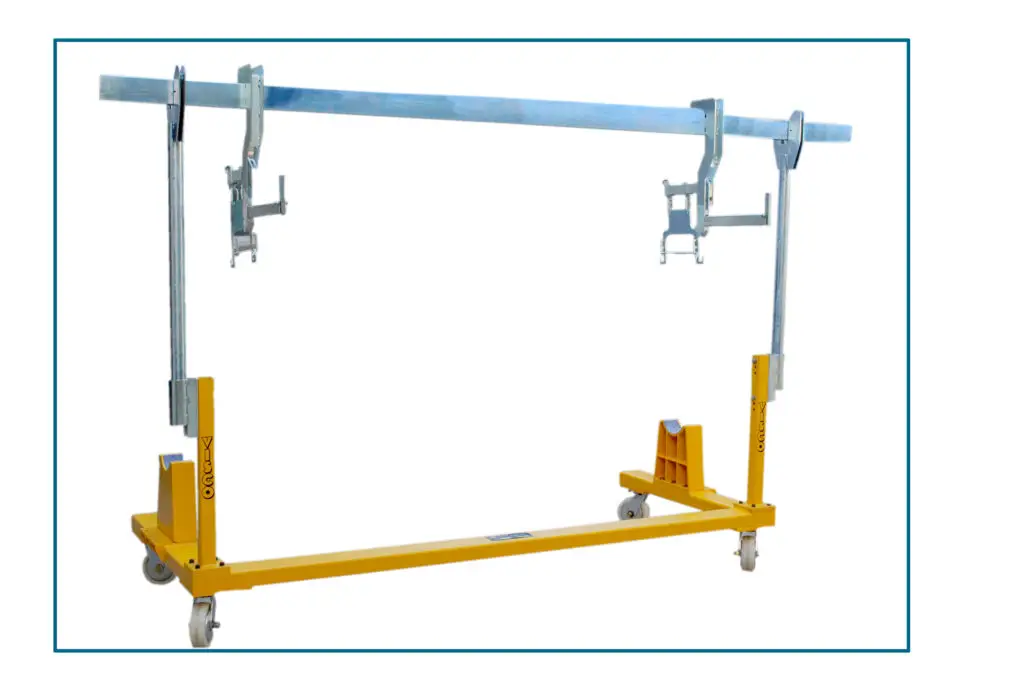

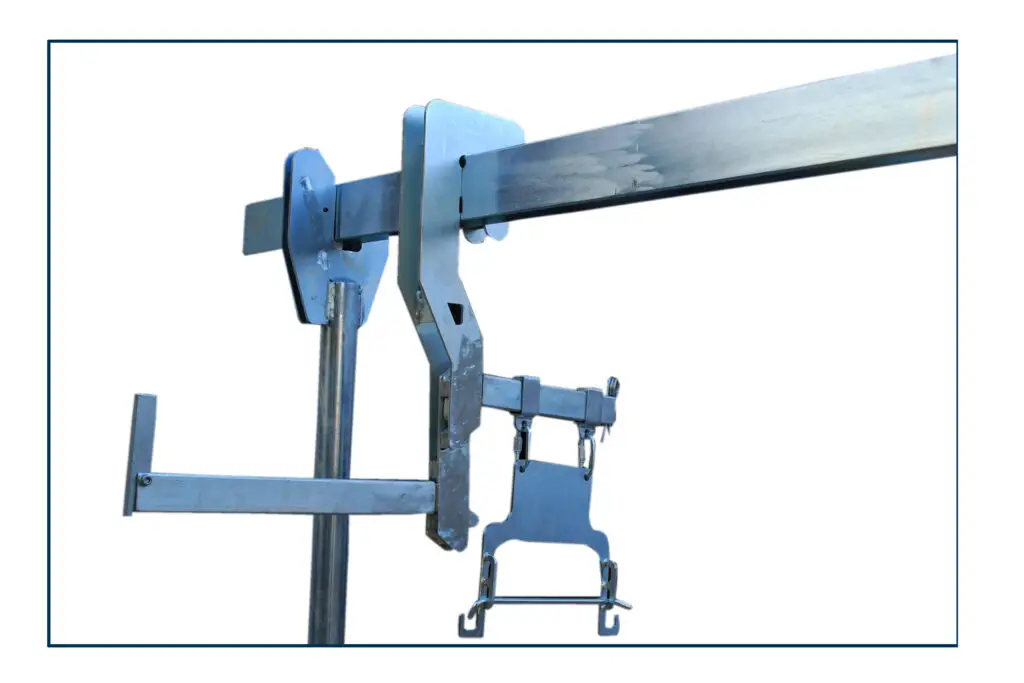

Specially designed for automatic drawing-in machine & drawn beam Parking.
Application Features
Cloth Roll Doffing Carrier (Cradle Type) is designed for lifting & transporting the big batch (cloth roll) from batching motion/off loom’s take-up. Lifting of cloth roll is done by rigid cradle top from batching motion very easily. This equipment can easily handle bigger diameter fabric roll and conveniently place them to the floor. It has robust construction, flawless functionality and longer operational life.
Technical Features
- Maximum Cloth Roll Weight
- : 1000 to 4000 Kgs
- Maximum Cloth Roll Dia
- : 800 to 1500 mm
- Maximum Cloth Roll Length
- : 1500 to 4400 mm
Application Features

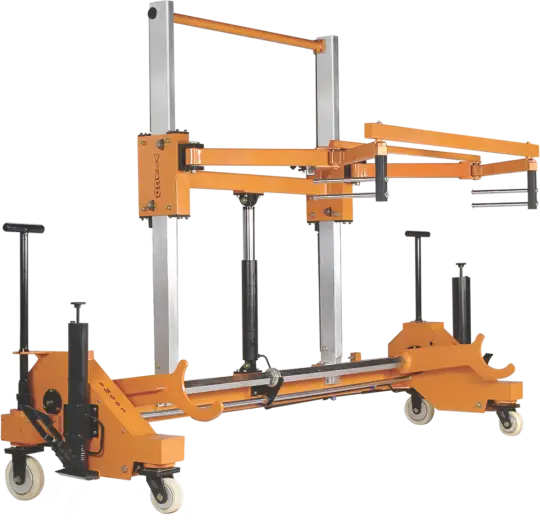

Trolley is designed for lifting & transporting of drawn warp beam in connection with the harness carrier & drop wire carrier of different length & weight. Lifting & lowering movements take place from the ground floor, so that the beam can be fitted on the weaving machine very conveniently. Harness holder & drop wire holder provided with carrier.
Technical Features
- Maximum Beam Weight Capacity
- : 1000 to 4000 Kgs
- Maximum Beam Flange Dia
- :800/1000/1100/1250/1400 mm
- Maximum Barrel Dia
- : 150 to 365 mm
- Maximum Barrel Length
- : 1800 to 4400 mm
- Maximum Barrel Capacity
- : 250 to 400 Kgs
Application Features

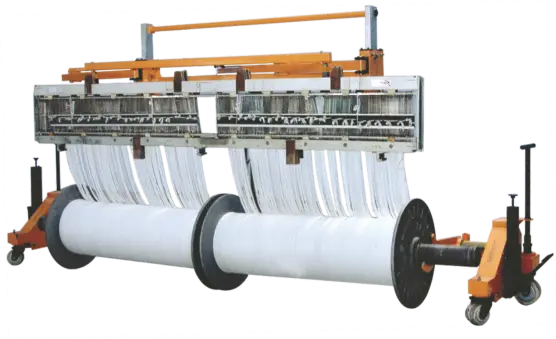

Trolley is designed for lifting & transporting of drawn double (Twin) warp beam in connection with the harness carrier & drop wire carrier of different length & weight. Lifting & lowering movements take place from the ground floor, so that the beam can be fitted on the weaving machine very conveniently. Harness holder & drop wire holder provided with carrier.
Technical Features
- Maximum Beam Weight Capacity
- : 1000 to 4000 Kgs
- Maximum Beam Flange Dia
- : 800/1000/1100/1250/1400 mm
- Maximum Barrel Dia
- : 150 to 365 mm
- Maximum Barrel Length
- : 1800 to 4400 mm
- Maximum Barrel Capacity
- : 250 to 400 Kgs
Application Features

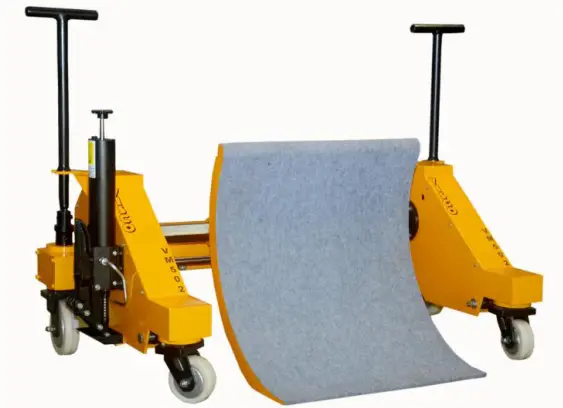

Trolley having compact design for lifting and transporting a cloth roll in narrow passageways. Cloth roll cradle can be lowered up to the ground. floor. Cloth roll ready on weaving machine can be directly lifted & transported. Suitable for on loom cloth roll handling and transport.
Technical Features
- Maximum Cloth Roll Weight
- : 300 to 500 Kgs.
- Maximum Cloth Roll Dial
- : 250 to 700 mm
- Maximum Cloth Roll Length
- : 1500 to 3600 mm
Application Features

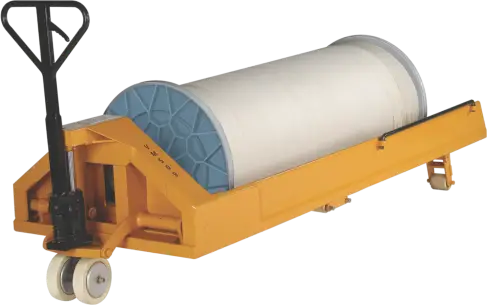

Trolley is designed for lifting & transporting of warp beam of different length & weight. Lifting & lowering movements take place from the ground floor.
Technical Features
- Maximum Weight Capacity
- : 1000 to 4000 Kgs
- Maximum Beam Flange Dia
- : 800/1000/1100/1250/1400 mm
- Maximum Fork Length
- : 1800 to 4400 mm
