First Indian Manufacturer to achieve maximum efficiency with best quality by handling Fine monofilament material with groundbreaking integration of automation. Rabatex proudly has highest market share in India for this product segment.

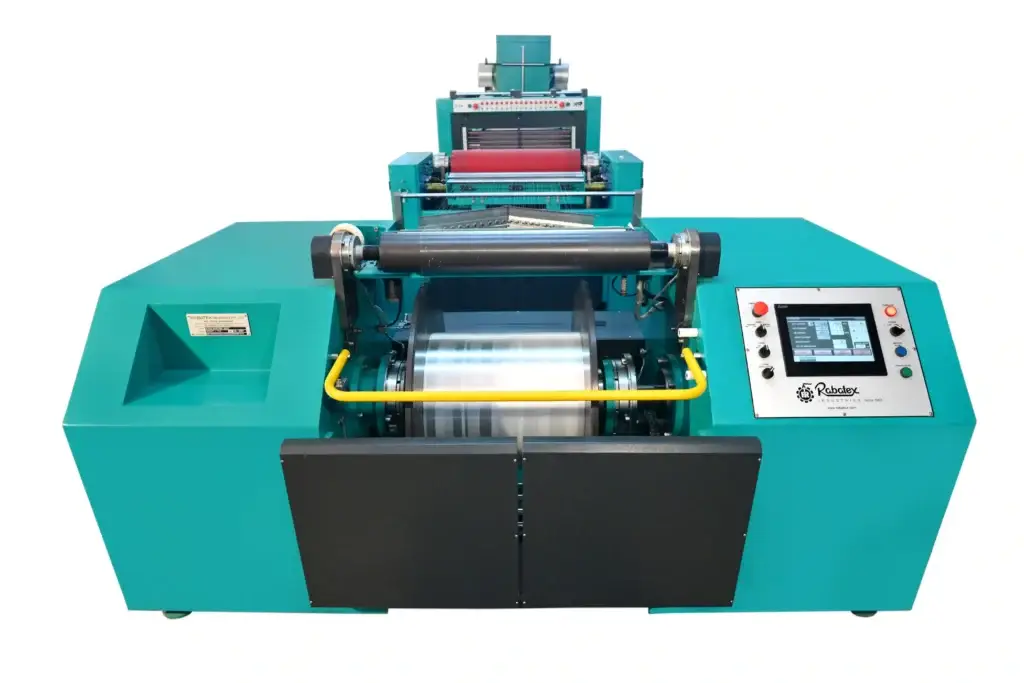

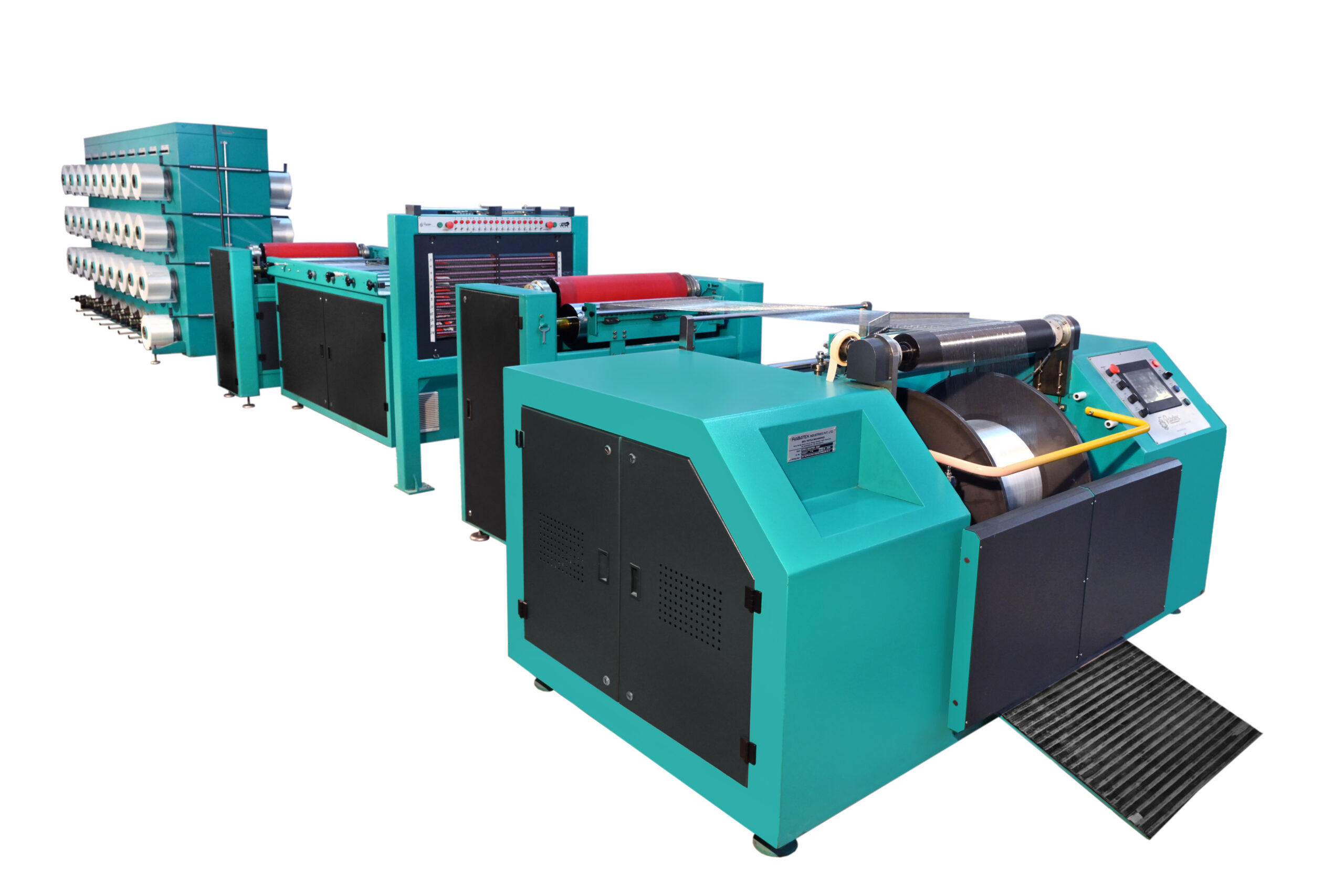

MONO MOTHER YARN DIRECT SPLIT WARPING MACHINE
MONO MOTHER YARN DIRECT SPLIT WARPING MACHINE
Technical Features
Useful Working width
: 535 mm(21 Inch)
Beam flange Dia
: 762 mm (30 Inch)
Warping speed
: 300 MPM to 600 MPM
Maximum Package Dia
: 380MM
Creel pitch
: 400 mm
Vertical deck : 4
: 4
Standard filament
: 12 ( Higher on Request)

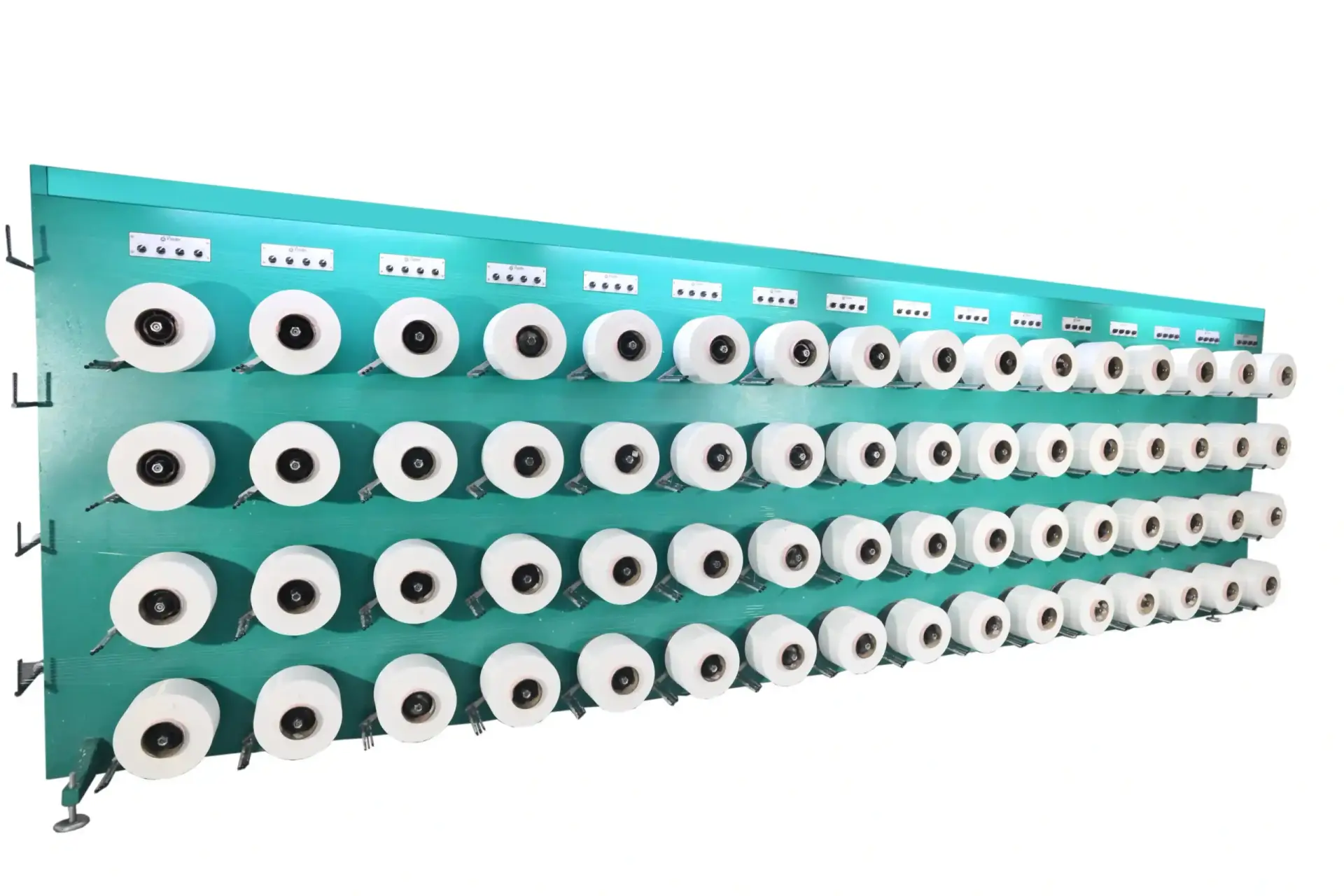

Mother yarn creel End
: 72 / 80 /96 /104 ends (Other on request)
Spindle Drive
: Individual Motor drive

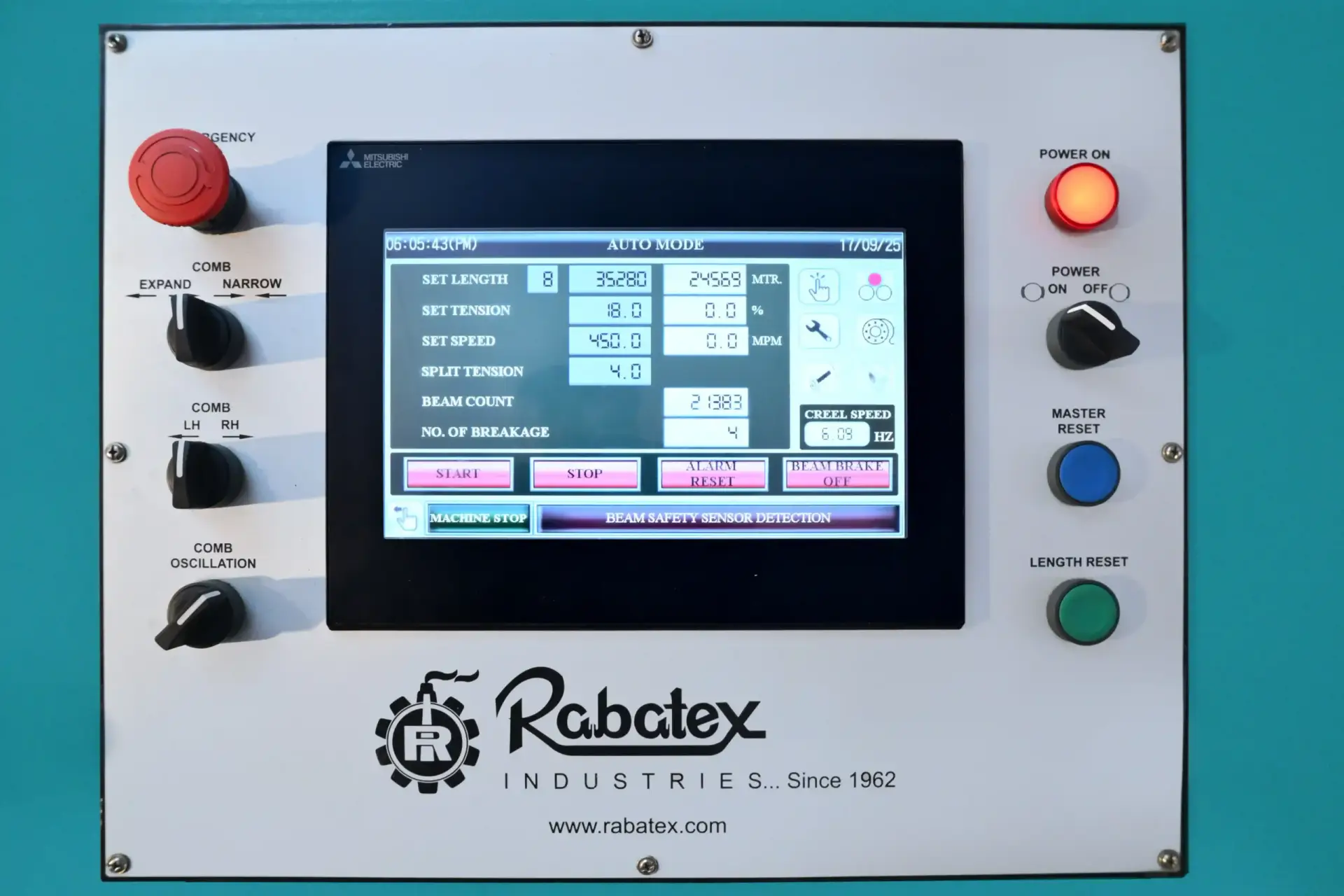

Controller
: PLC controller with Ac Drive
Individual package braking
: Provided
Spindle Drive
: Provided
Unused Package Bypass :
: Provided
Suitable warp
: Polyester / Nylon / polyamide
Features Highlights

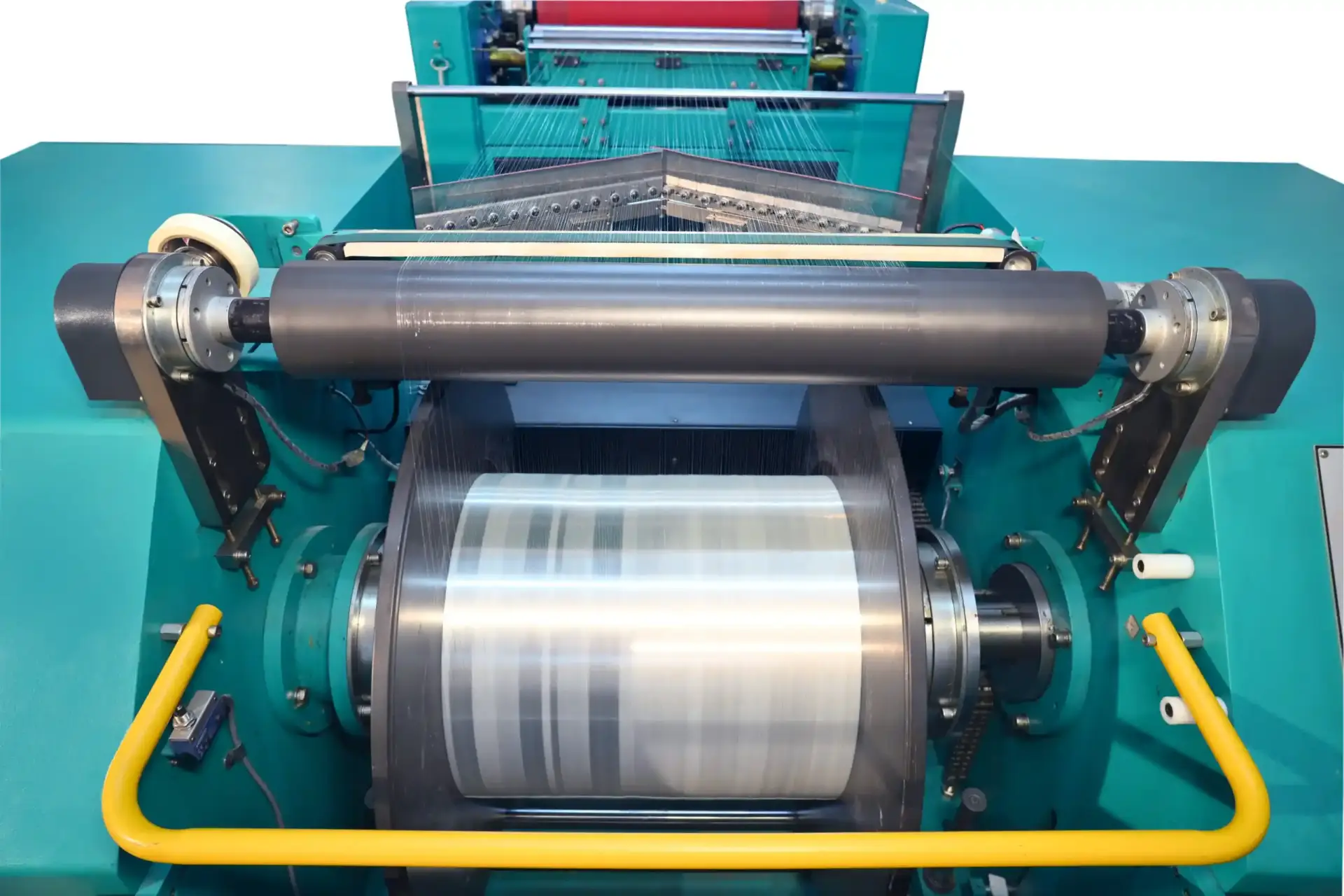

Heavy duty beaming unit
Motorized Beam Load unload assembly on linear rail guide with precise beam auto detecon sensor

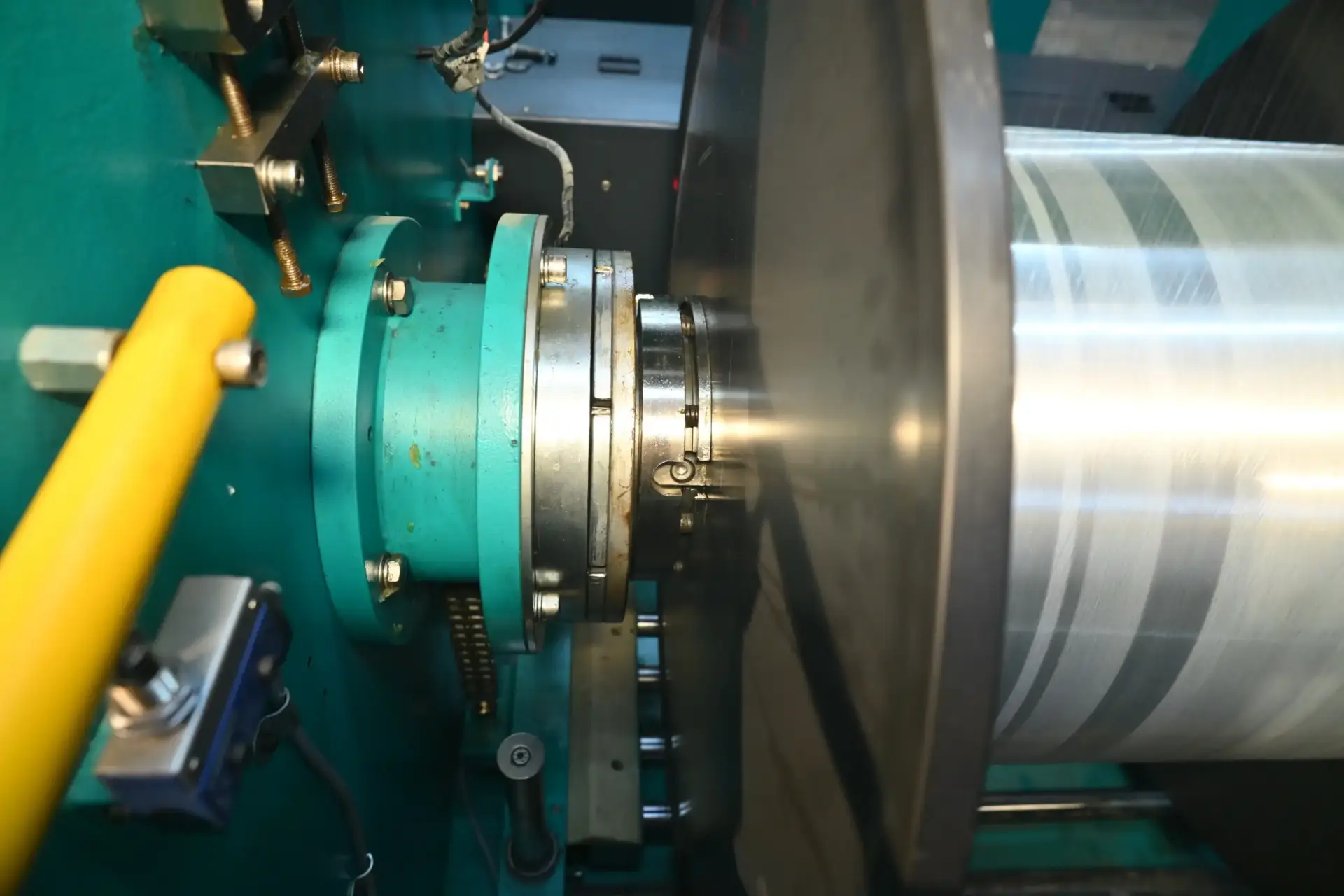

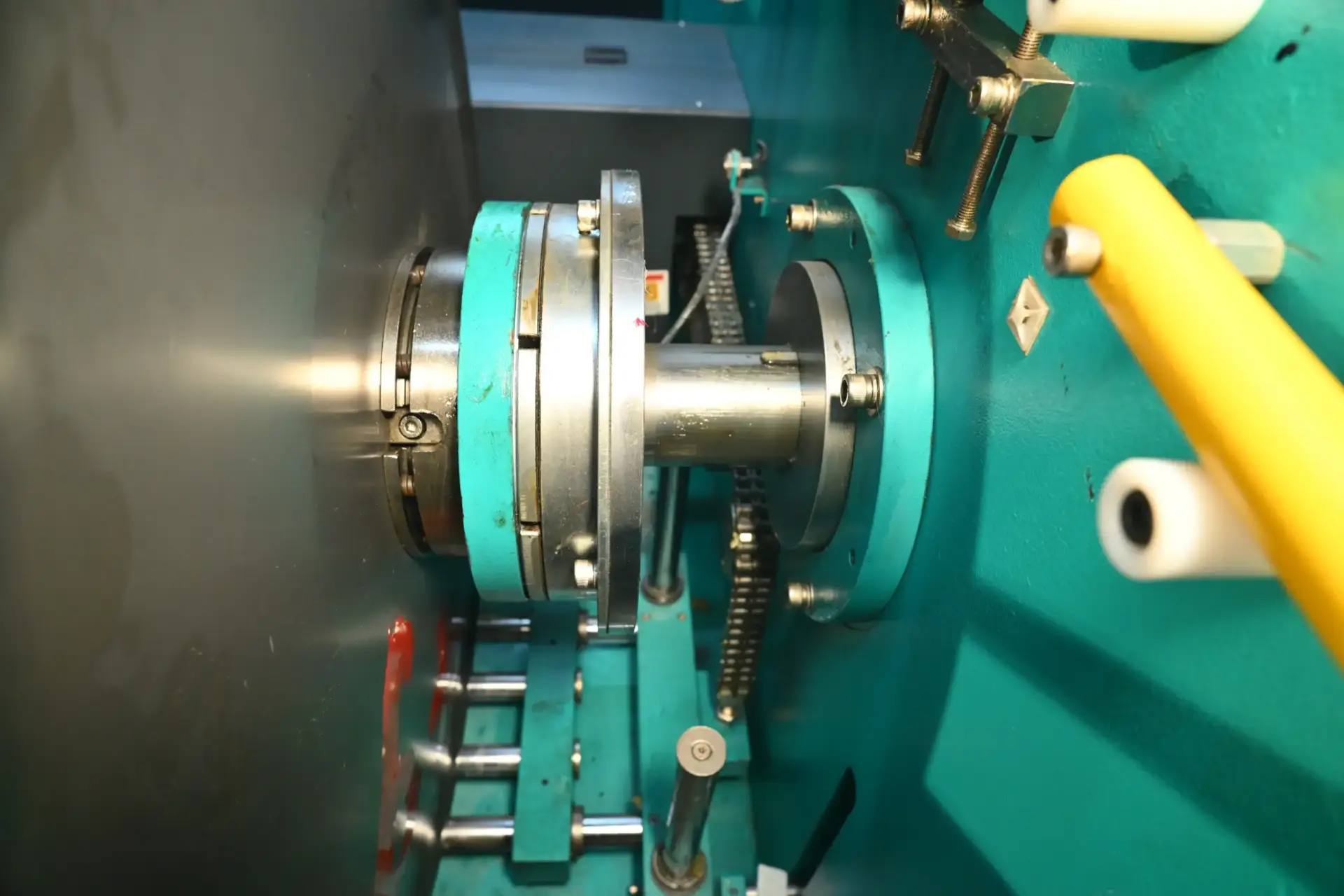

Motorized Beamer beam chuck de chuck with torque limiter
Constant beaming line speed control

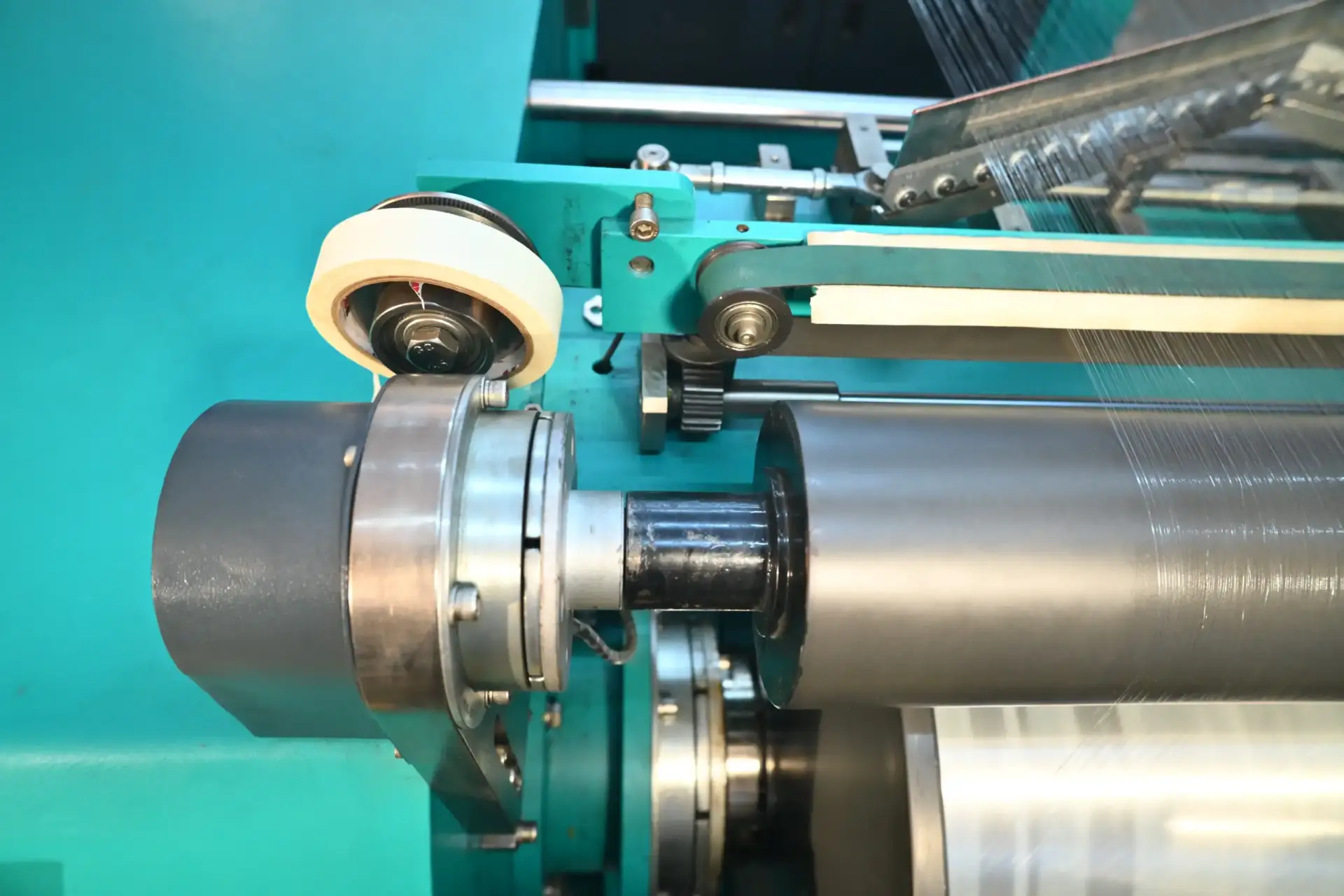

Encoder on Measuring roll for beaming precise length and line speed control
Constant beaming thread tension

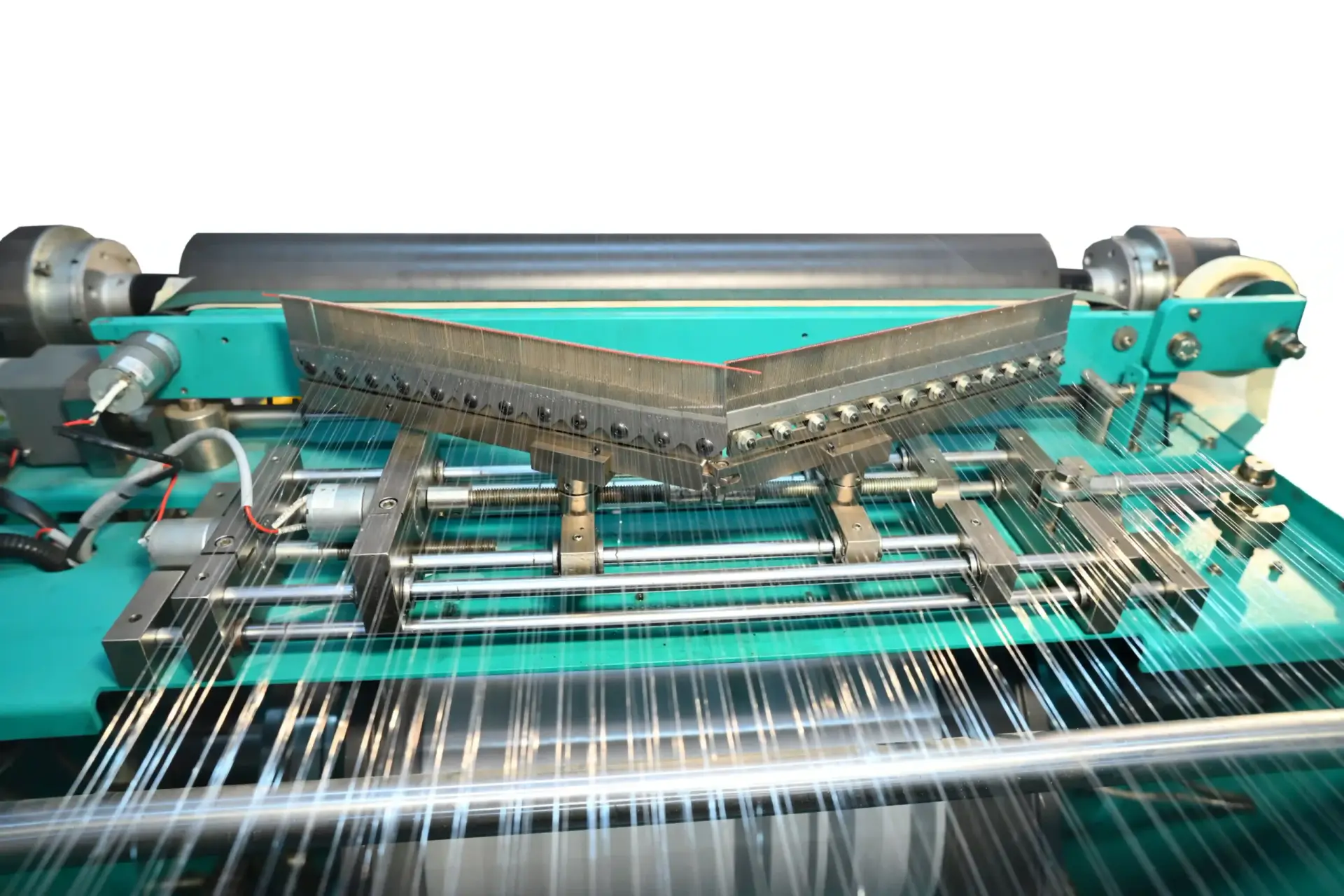

Motorized comb assembly to adjust precise yarn sheet width with motorized oscillaon
