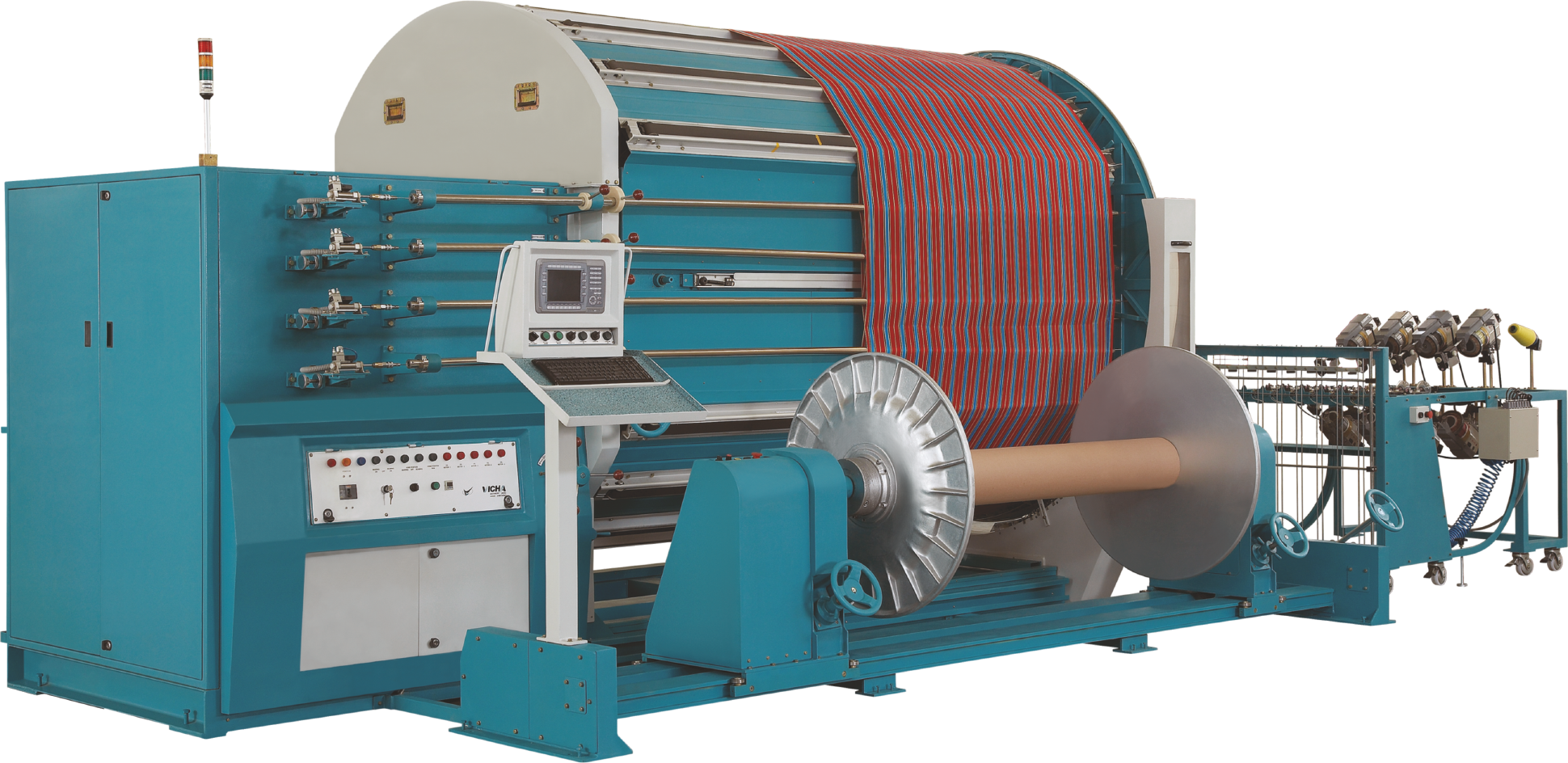

Single End Warper RI 601
Feature Highlights
- At Present global textile market becomes more competitive / fashion oriented with shortest lead time requirment. This advancement may help to various segment like yarn dyed shirting/ suiting/ furnishing/ technical textiles to create sample with Minimum material and shortest possible time frame.
- Single End Sample Warper is the need of the hour for any modern weaving unit. This product enables manufacturers to produce sample warps of short lengths (less than 100 meters).
- The Single End Sample Warper reduces the sampling cost and eliminates yarn wastage, producing a clear ‘replica’ of the sample fabric to be weaved in bulk. Effectively saving time this single end sample warper produces a live , warp sample in a limited amount of time.
- Given its time-saving capabilities and effective use of yarn this single End Sample warper will help you reap the rewards of your investment in just months.
Technical Feature :
- Drum Circumference : 7000 mm.
- Warping Width : 1900 mm.
- Warping Length : 7-105 mtr.
- Warping Speed : 1000 mtr./min.
- Thread pick up speed : 500 mtr./min.
- Thread change speed : 500 mtr./min.
- No. of thread feeder : 08 ends.
- Max. beam flange dia : 600 -1000 mm
Creel Options
Stationary Creel Model RI 701
Up to a maximum of 8 different colors of warp can be used. User friendly and programmable. Various pattern selection. A specially developed sensor does not allow miss or double ends. Option of thread accumulator available with 8 cone holder frame.
Up to a maximum of 8 ends can be placed with implies up to maximum 8 threads being warped at the same time. This increases the warping efficiency significantly. The creel is precisely synchronized by a variable frequency digital A.C. drive and quick response thread accumulator.
Rotary Creel Model RI 801
