Fine-Tuned Yarn Control for Perfect Warping

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed viverra ante vel lectus consectetur vestibulum. In cursus dictum nibh molestie pretium.

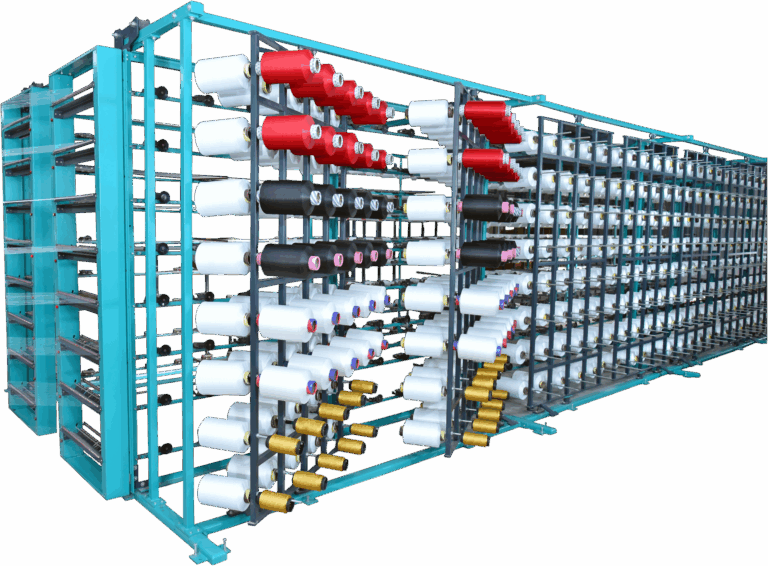

CONE CREEL SWIVEL FRAME TYPE RI 202
CONE CREEL SWIVEL FRAME TYPE RI 202

Technical Features

  • Standard pitch
  • : 280 mm (vertical/horizontal)
  • Standard ends
  • : 320/400/480/560/640/720/800/880/960/1200 ends
  • Standard vertical deck
  • : 8 (Optional deck :5/6/7/8/10/12)
  • Cone holder
  • : Spindles swivel type
  • Pitch on request
  • : 200 mm/280 mm/300 mm/350 mm
  • Tensioner type
  • : Ratchet type/Tiana type
  • Stop motion
  • : Optical type
  • Eyelet
  • : Ceramic eyelet (closer/open type)
  • Reserve package holder
  • : Same as per creel capacity

Optional Accessories

  • Static eliminator on stop motion

Features Highlights

  • MS tube fabricated structure
  • Manually withdrawable Tensioner frame
  • Thread draw off: outside to inside
  • Stop motion with row wise indication

Tensioners & Guide

Stop Motion Sensor & Dropper Pin

Optional Accessory

TIANA type or pillar type thread tensioner

Ratchet type thread tensioner
