Precision sizing systems ensuring uniform yarn treatment, optimal adhesion properties, and enhanced weaving performance for superior fabric characteristics.

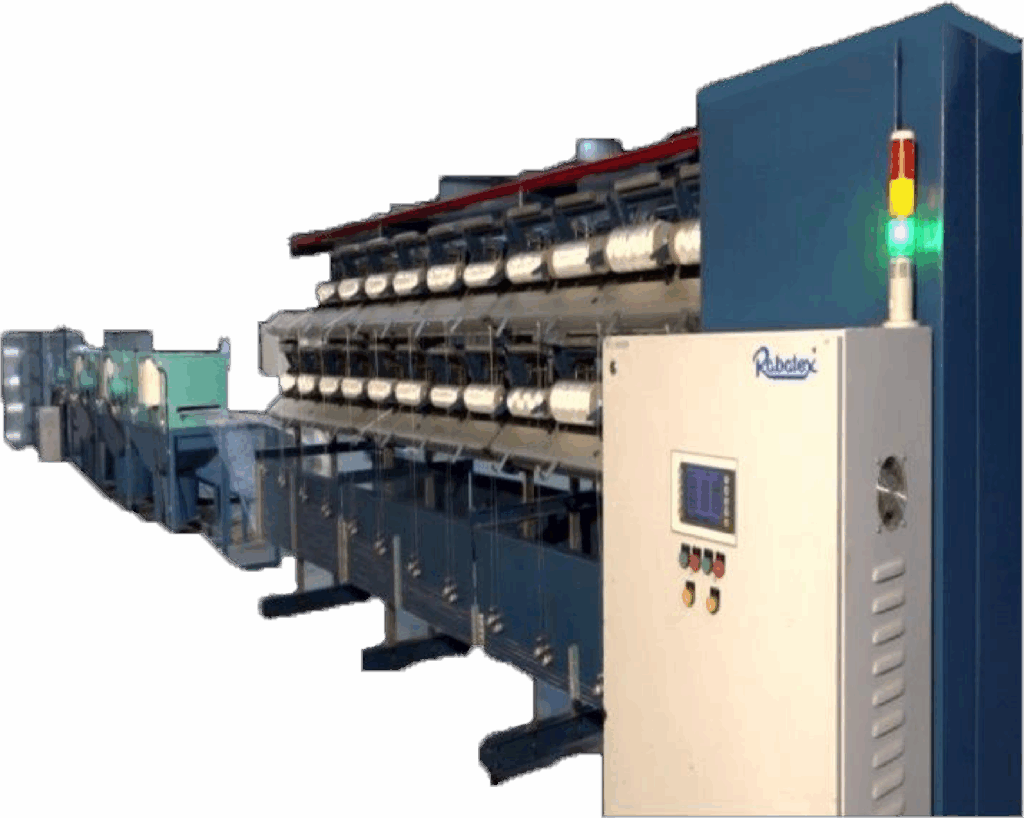

MULTI END SIZING RI 8001 M
Technical Features
No. of Creel Ends
: 48 to 400
Machine Type
: Multi End Coating Machine
Package Winding Motor
: Controlled by individual AC motor with individual traverse cam
Winding Speed
: 0-150 MPM (Depend on the type of yarn)
Drying Option
: IR drying with convection or induction heating attach
Temperature Control
: Provided drying zone from 80-150 degree centigrade
Chemical Tank
: SS fabricated size chemical tank provided
Chemical Circulation
: Pump provided
Chemical Pump Motor & Pump
: Controlled by AC motor
Hot Air Circulation Device
: Controlled by blower motor
Features Highlights
Individual yarn tensioners to provide the uniform tension
Very Simple chemical though given so as to make yarn passage smooth avoiding unnecessary tension on yarn. No rollers, no extra tensioners
In though, two Sponge squeezers of special material given to squeeze the extra paste from yarn giving advantage of full size penetration in the yarn and extra strength by giving compact effect, uniform drying of the yarn
Advanced IR dryer with convection system for uniform drying of each yarn
Saving of energy by providing hot air circulation system
Contact less dryer avoid the chances of damaging the yarn coating
Adjustable heat setting of dryer will help to maintain the even moisture in the yarn
Precision winding with traverse guide provided for individual spindle to make final package uniformly wound
Winding of cheeses with bi conical/ straight edges
Individual package traverse length adjustments.
Very low maintenance cost as the machine is very sturdy and compact
Package holder cradles are provided to give enough compactness of package
