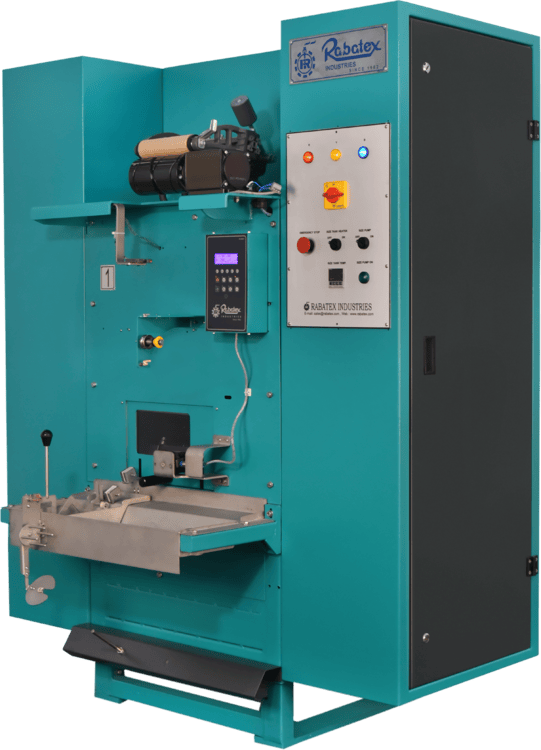

Single End Sizing Machine

Model RI 8001

The Single End Sizing winder for the warp contributes to the improvement of weaving efficiency and quality.

The Single End sizing winder has combination of three processes which are coating (Sizing), drying and winding continuously on individual spindle, these improves weaving efficiency resulting into quick samples.

Features Highlights

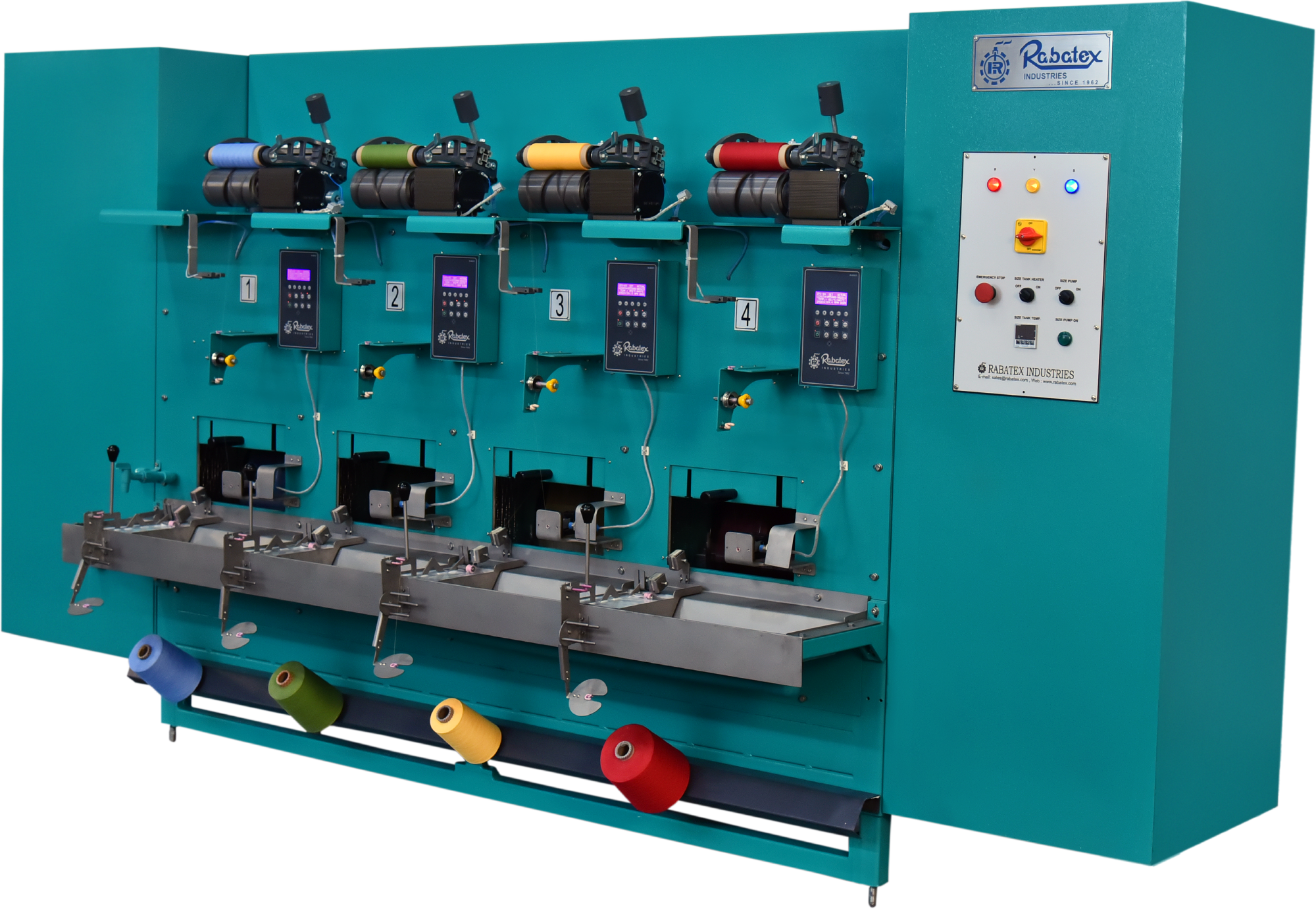

  • The ergonomically designed and individual spindle driven Rabatex Single End Sizing Machine RI 8001 is available in 4, 8, 12, 16 or 20 spindle configurations.
  • The machine offers easy yarn passage, there is no excess yarn tension and has an easy to handle yarn brake.
  • It is possible to size yarns counts of between 10’s and 120’s Ne & 30 to 210 deniers at winding speeds of up to 300 metres per minute, depending on the yarn type.
  • The RI 8001 comes with a grooved drum or yarn traverse system for polyester yarn and the length measuring system (optional).
  • The RI 8001 comes with choice of an electrical or dry steam heater for the heating system to dry the yarn. The air circulation fan and the temperature controller provide uniform and required temperature for all spindles, to ensure and maintain even drying.
